A10 Guardrails

Overview

Bifrost Enterprise supports A10 Guardrails as a third-party guardrail provider for LLM requests and responses. A10 owns the policies and their decisions. Configure the rules on your A10 Guardrails firewall, then attach the A10 profile to a Bifrost rule to choose which traffic is evaluated. Bifrost sends the selected text to the firewall and enforces the result inline:

Allow: Bifrost continues the request or response unchanged. A10 FLAG results are recorded but do not block.
Block: Bifrost returns a guardrail intervention and does not continue that phase.
Rewrite: A10 returns transformed text, for example after redacting a value. Bifrost replaces the matching request or response text with A10’s version.

A10 is a provider-managed transformation: the firewall returns already-rewritten text, and Bifrost applies it. The A10 profile does not expose Bifrost action, redaction_strategy, or redaction_mode settings. See Bifrost-Managed vs Provider-Managed Rewrites.

Prerequisites

Bifrost Enterprise with guardrails enabled
A reachable A10 Guardrails firewall deployment and its base URL
An A10 client ID for that firewall
Input and/or output guardrails configured on the firewall
Network egress from Bifrost to the firewall

How It Works

Create a Bifrost provider configuration with provider_name: "a10".
Attach it to a guardrail rule that applies to input, output, or both.
Bifrost sends a POST request to <base_url>/v1/validateParsedText with the client ID in the x-eag-clientid header. Bifrost also sets direction headers so the firewall applies its input or output guardrails.
A10 evaluates its rules and returns an overall action, per-rule results, and any transformed text.
Bifrost maps that result to the request or response path.

Input evaluation sends an OpenAI-compatible chat request with the routed model name. Each text segment is sent as its own message so that A10’s transformed messages stay aligned with the original positions. Roles other than system, developer, user, assistant, and tool are sent as user. Output evaluation sends an OpenAI-compatible chat.completion object, with each response text segment as a separate assistant choice.

Decision Mapping

A10 result	Bifrost behavior
Overall `Action` is `BLOCK`/`BLOCKED`, or any rule result is blocked	Guardrail intervention
`FLAG` or no action	Content continues unchanged
Transformed text returned (`FinalInputJson`, `ConsolidatedFinalInput`, or `ConsolidatedFinalOutput`)	Bifrost applies the rewritten text
A10 reports a redaction or transform (`REDACT`, `REDACTED`, `TRANSFORMED`, or a redacted rule), but Bifrost cannot apply it exactly	Guardrail intervention (fails closed)

Bifrost records up to eight A10 rule names and actions with the guardrail result. Screened content is not included in that summary.

If A10 reports a redaction but the transformed messages cannot be mapped back to the original text, for example because the message count differs, Bifrost blocks instead of forwarding the original content.

Configuration Fields

Field	Type	Required	Default	Description
`base_url`	string	Yes	-	Firewall origin, such as `https://firewall.example.com`. Must be an absolute `http` or `https` URL with no path, query, fragment, or credentials. A trailing slash is accepted. Bifrost appends `/v1/validateParsedText`.
`client_id`	string	Yes	-	A10 client ID sent as `x-eag-clientid`. Supports `env.A10_CLIENT_ID`. Stored encrypted and redacted in API responses.
`timeout`	integer	No	`30`	Provider execution timeout in seconds. A nearer request deadline takes precedence.

Configure Bifrost

Web UI
API
config.json
Helm

Go to Guardrails > Providers.
Select A10 Guardrails and click Add Configuration.
Enter a descriptive Name.
Enter the Firewall base URL and Client ID.
Set the timeout, click Verify, enable the configuration, then save it.
Under Guardrails > Rules, attach the saved A10 profile to an input, output, or both-phase rule.

The configuration must be verified before it can be enabled. Changing any field other than Enabled requires verifying again.

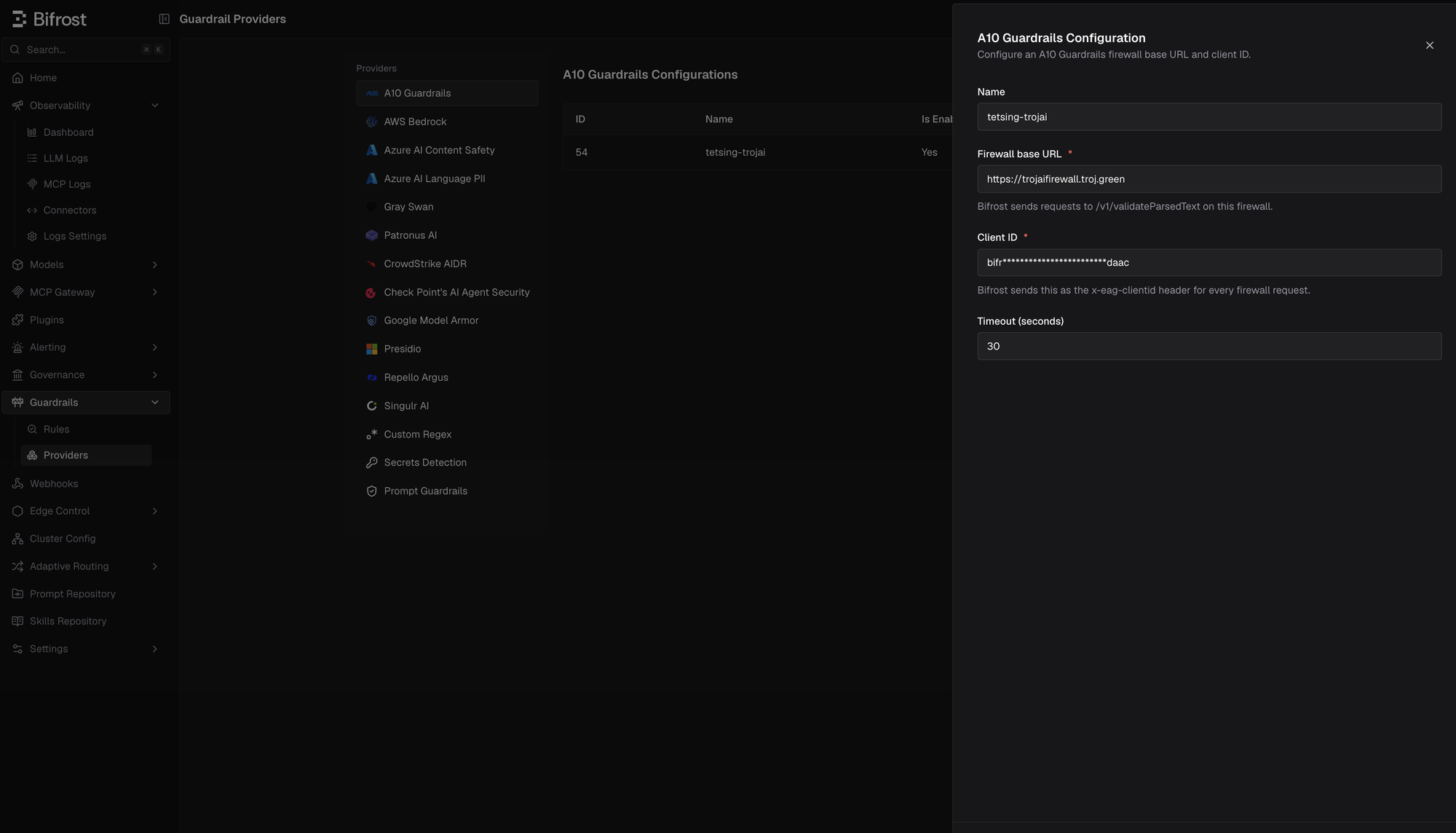

A10 Guardrails configuration in the Bifrost Guardrails Providers screen

Create the A10 provider configuration with the management API:

curl -X POST http://localhost:8080/api/guardrails/a10 \
  -H "Content-Type: application/json" \
  -d '{
    "name": "a10-production",
    "enabled": true,
    "config": {
      "base_url": "https://firewall.example.com",
      "client_id": "env.A10_CLIENT_ID",
      "timeout": 30
    }
  }'

Fetch the generated configuration ID:

curl -X GET http://localhost:8080/api/guardrails/a10

Attach it to a rule by referencing a10:<id> in selectedGuardrailProfiles:

curl -X POST http://localhost:8080/api/guardrails/rules \
  -H "Content-Type: application/json" \
  -d '{
    "name": "a10-all-traffic",
    "description": "Apply A10 Guardrails policies to prompts and completions",
    "enabled": true,
    "celExpression": "provider == \"openai\"",
    "applyTo": "both",
    "samplingRate": 100,
    "timeout": 60,
    "selectedGuardrailProfiles": ["a10:26"]
  }'

{
  "guardrails_config": {
    "guardrail_providers": [
      {
        "id": 26,
        "provider_name": "a10",
        "policy_name": "a10-production",
        "enabled": true,
        "timeout": 30,
        "config": {
          "base_url": "https://firewall.example.com",
          "client_id": "env.A10_CLIENT_ID"
        }
      }
    ],
    "guardrail_rules": [
      {
        "id": 261,
        "name": "a10-all-traffic",
        "description": "Apply A10 Guardrails policies to prompts and completions",
        "enabled": true,
        "cel_expression": "provider == 'openai'",
        "apply_to": "both",
        "sampling_rate": 100,
        "timeout": 60,
        "provider_config_ids": [26]
      }
    ]
  }
}

bifrost:
  guardrails:
    providers:
      - id: 26
        provider_name: "a10"
        policy_name: "a10-production"
        enabled: true
        timeout: 30
        config:
          base_url: "https://firewall.example.com"
          client_id: "env.A10_CLIENT_ID"

    rules:
      - id: 261
        name: "a10-all-traffic"
        description: "Apply A10 Guardrails policies to prompts and completions"
        enabled: true
        cel_expression: "provider == 'openai'"
        apply_to: "both"
        sampling_rate: 100
        timeout: 60
        provider_config_ids: [26]

Supported Content and Limitations

LLM input and output: A10 evaluates text-bearing request and response content. Each text segment is evaluated and rewritten in place.
Tool calls: LLM tool-call arguments are sent to A10 as text segments and can be blocked or rewritten.
Single rewrite owner: A10 rewrites cannot be combined with Bifrost-managed redaction or another provider’s transformed output in the same request or response phase. Bifrost fails closed in that case.
Errors: Non-2xx responses, timeouts, and unparseable A10 responses are treated as provider errors.
Images and files: This integration sends text content, not image pixels, file bytes, or arbitrary binary payloads.

For shared rule behavior, CEL scoping, streaming replay, and audit logging, see Guardrails. For the general redaction model, see Guardrail Redaction.
