Authentication

A request can cross several authentication boundaries. Configure each one for the service receiving it.

Who is connecting?	What authenticates the call?	Where do you set it?
Your application calls an agent through Bifrost	Your application’s Bifrost virtual key or supported enterprise identity	Send it with the request from your application.
Bifrost fetches the agent card	Credentials required by the server hosting the card, if it is protected	Card fetch options in the registration form.
Bifrost sends work to your agent	Credentials required by your agent’s API	Request authentication in the registration form.
Your agent calls Bifrost for models or tools	A Bifrost credential sent by your agent, such as the caller’s forwarded virtual key	Configure your agent server to send it on its LLM and MCP requests.

The Agent Card is an A2A discovery document. It describes what an agent can do, where to call it, and which authentication its requests require. Bifrost needs to fetch that document before it can read those requirements.

Fetch a protected card

In Agent Gateway, add or edit an agent. Expand the card options next to the Agent Card URL and configure authentication before fetching the card.

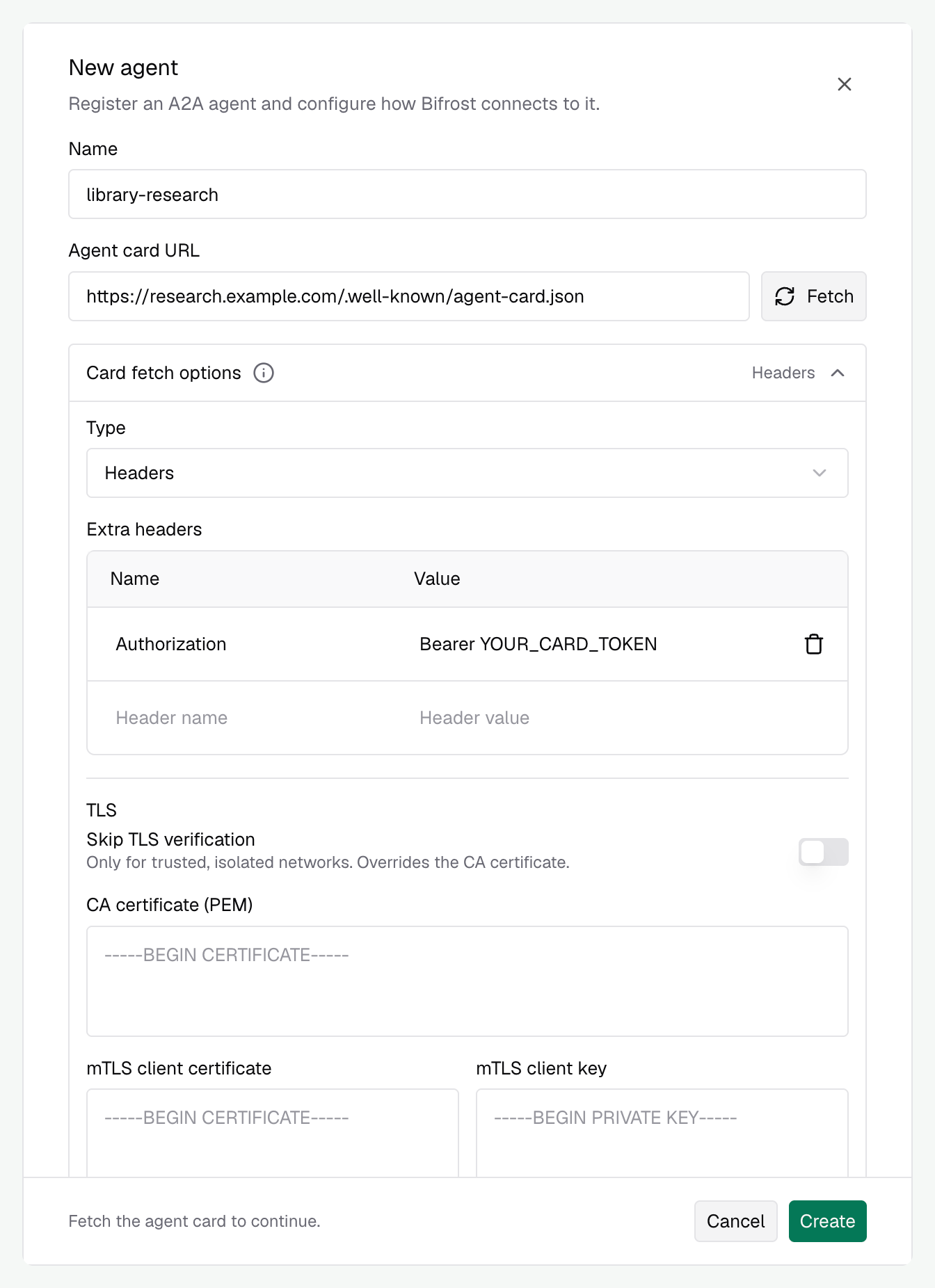

Expanded Card fetch options with an example Authorization header for a protected agent card

Choose No authentication for a public card, Headers for a token or custom header, or OAuth 2.0 client credentials when Bifrost must obtain an access token.

Card authentication only authenticates the card fetch. Configure request authentication separately, even if both connections use the same credential.

Authenticate agent requests

After you fetch the card, Request authentication selects the authentication type and required fields advertised by the agent. Enter the credentials your agent expects in those fields. For example, a card advertising bearer authentication adds an Authorization field where you enter Bearer YOUR_AGENT_TOKEN.

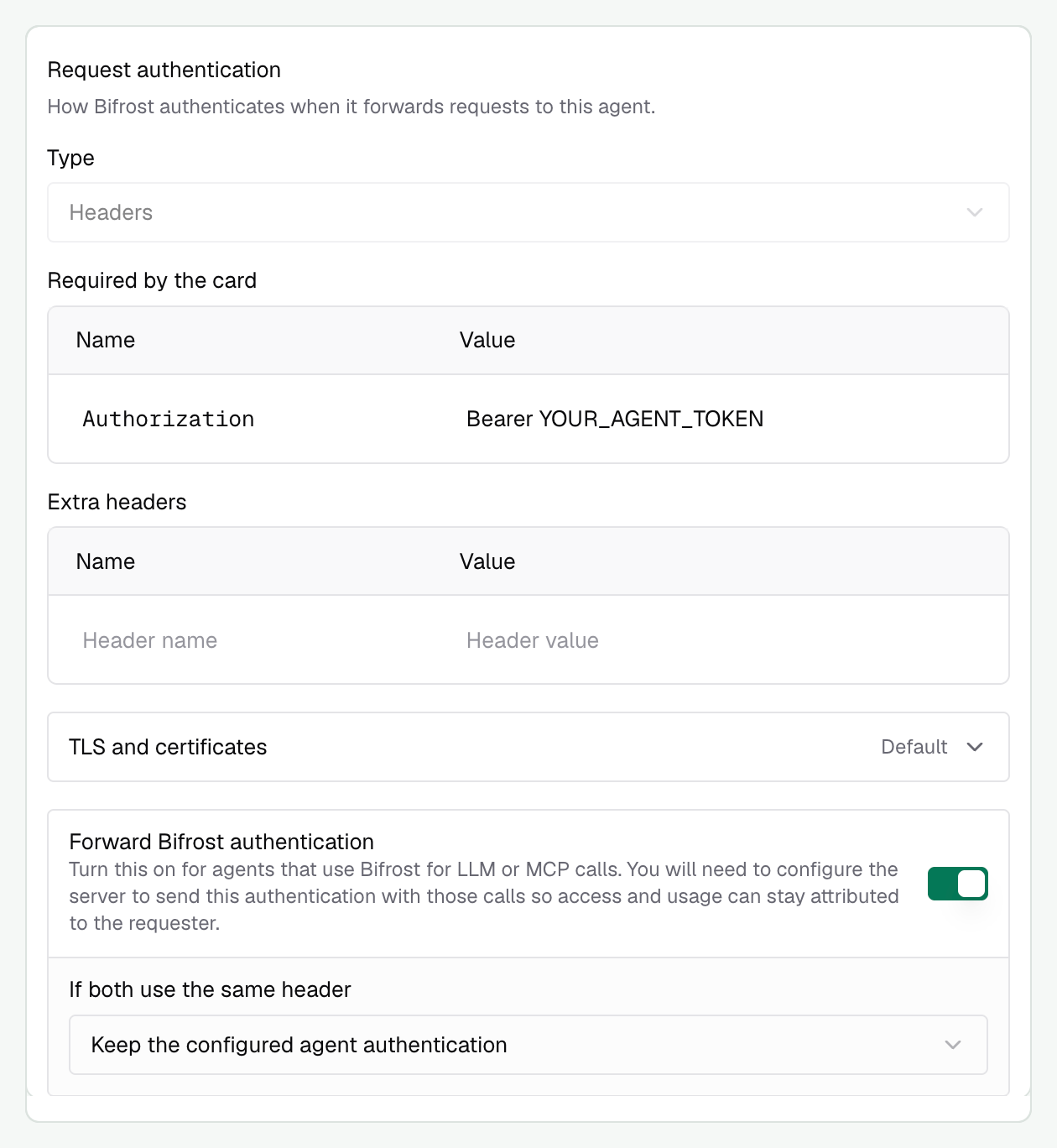

Request authentication selected from the agent card, with an example Authorization value

If the card offers alternatives, select a Card requirement. Names joined with + are requirements that must be satisfied together.

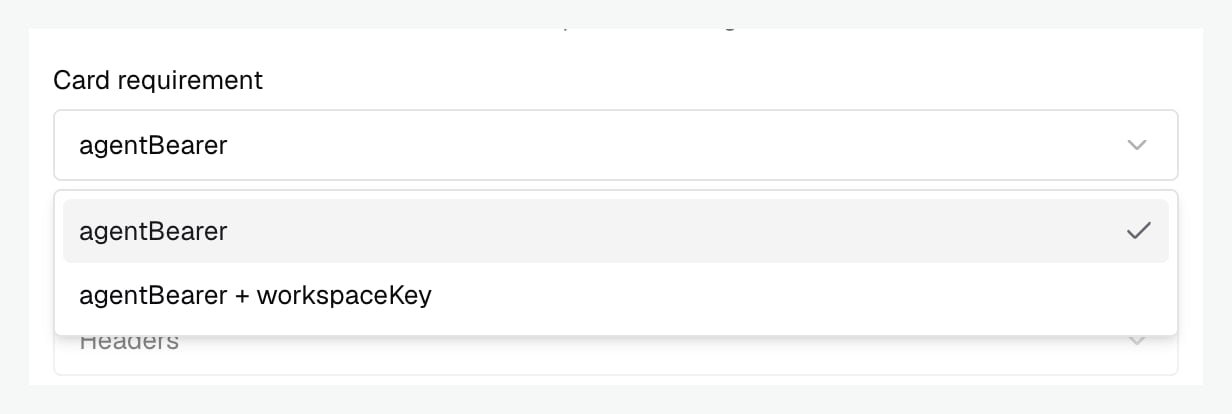

Card requirement selector offering agentBearer or the combined agentBearer + workspaceKey requirement

Type	What to supply
Headers	The required header values, such as `Authorization: Bearer …` or `X-Agent-Key`
OAuth 2.0 client credentials	Client ID, client secret, token endpoint or discovery information, and any required scopes or resource
No authentication	No runtime credential. Custom TLS can still be configured.

Override the card

Turn on Configure manually when the card’s requirements are incorrect, cannot be represented by the automatic selection, or differ from the authentication you want Bifrost to send. You can then choose the type and headers yourself. For example, if the card requires an Authorization header but your server accepts X-Agent-Key, enable Configure manually, select Headers, and configure X-Agent-Key with the value your server expects.

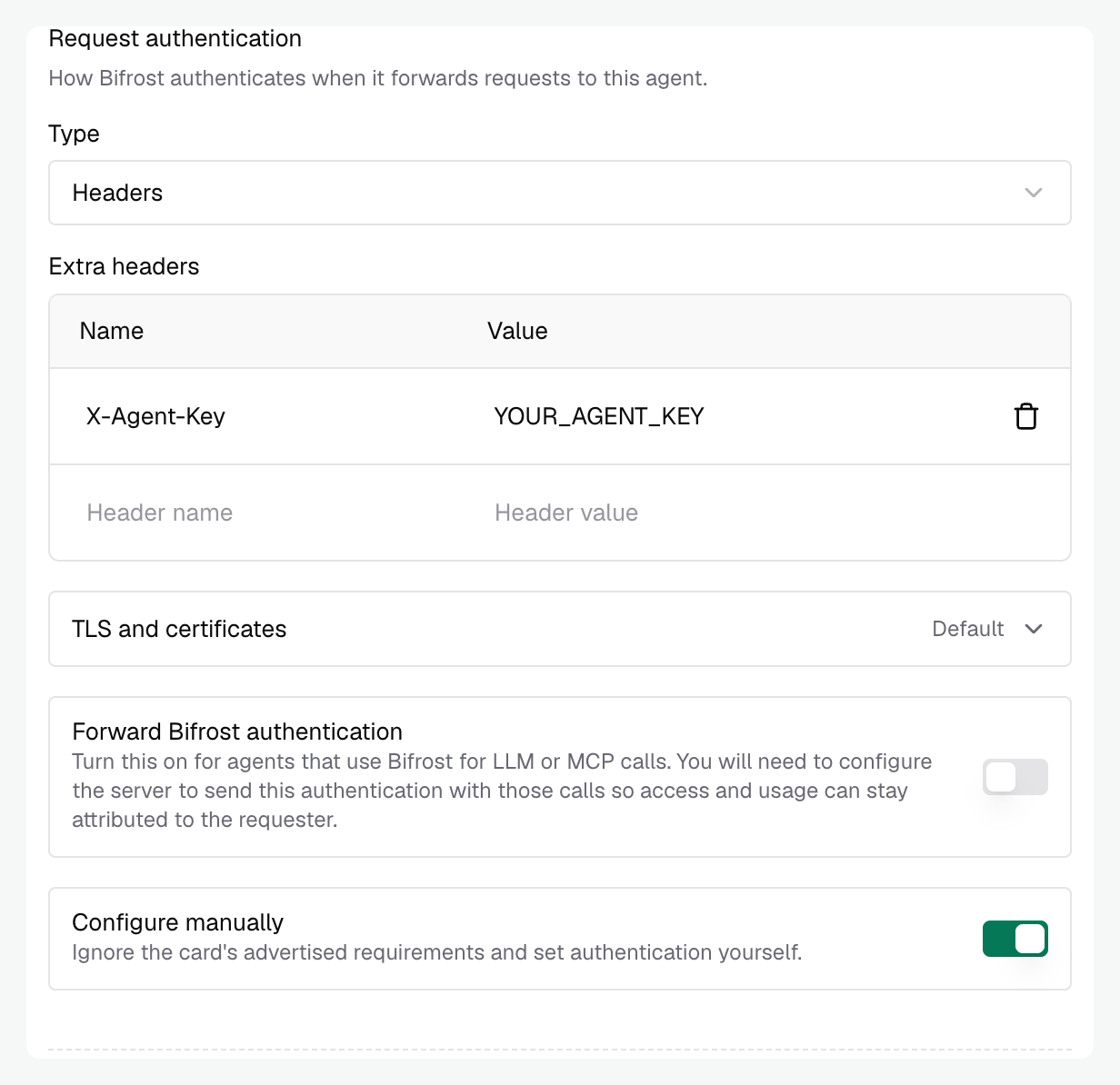

Manual authentication enabled with a custom X-Agent-Key header

This option applies to request authentication. Card authentication is always configured independently because Bifrost has not read the card yet.

Selecting No authentication means Bifrost sends no configured runtime credential. Use it when your agent accepts unauthenticated requests or authenticates with the caller’s forwarded credential.

Forward the caller’s Bifrost authentication

Bifrost strips the caller’s Bifrost authentication credential before forwarding a request to an agent by default. This keeps the gateway credential from being sent to an external server unless you explicitly configure that registration to receive it. If your agent uses Bifrost’s LLM or MCP gateway, enable Forward Bifrost authentication so it can reuse the caller’s Bifrost credential on those calls. Configure the agent server to send that credential to Bifrost, preserving the original caller’s access rules and usage attribution. This toggle controls the accepted Bifrost credential. Other application headers follow the normal forwarding rules; they do not require this toggle. Bifrost forwards the credential it accepted for the incoming request, using that credential’s header. For a caller using x-bf-vk, the agent receives x-bf-vk. This is opt-in and disabled by default. With forwarding enabled, the caller’s credential follows this path:

The gateway toggle covers Bifrost → agent. Your server must handle agent → Bifrost. Keep the forwarded credential scoped to the request, including asynchronous task work, and send it only to your Bifrost endpoint.

If both use the same header

Configured request authentication and forwarded Bifrost authentication can coexist when their headers differ. For example, X-Agent-Key authenticates the agent server while x-bf-vk identifies the caller for later Bifrost calls. When both need the same header, select a policy:

Option	Result
Keep the configured agent authentication	The configured credential wins on a collision. The accepted Bifrost credential is forwarded when its header has no configured value. This is the default.
Use the incoming Bifrost authentication	The accepted Bifrost credential replaces the configured credential on the same header.

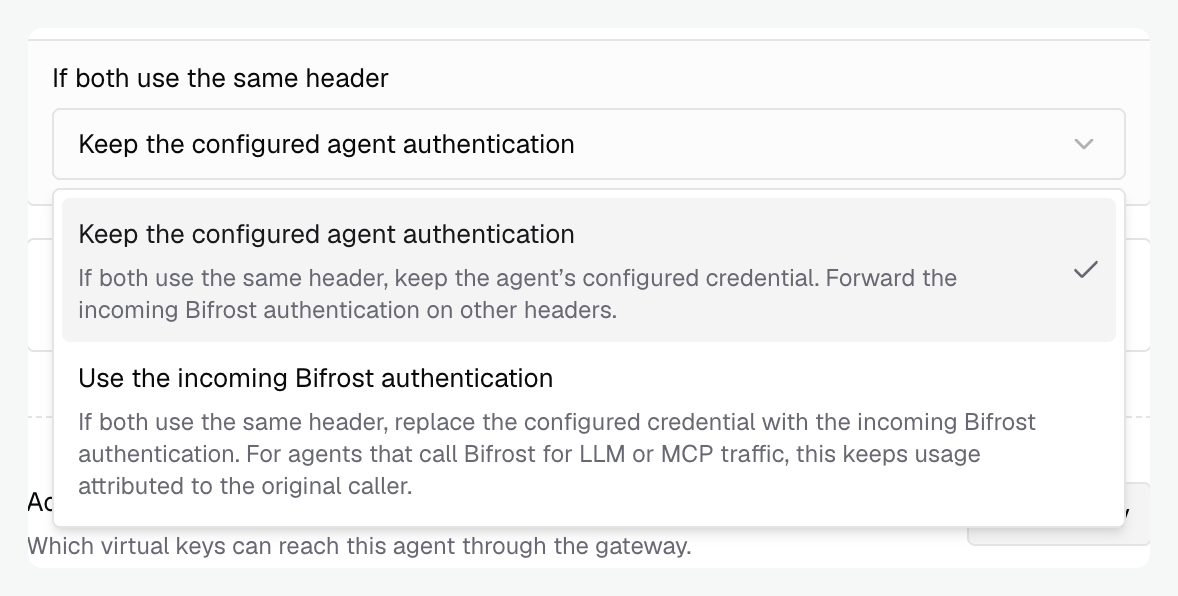

The same-header policy menu with options to keep configured agent authentication or use incoming Bifrost authentication

For an agent that relies entirely on the forwarded credential, enable Configure manually, select No authentication, then enable Forward Bifrost authentication. Leave card authentication configured if fetching the card still requires a separate secret.

Once your agent reuses the caller’s credential, attach the correlation headers to its model and tool calls too. These headers let you follow the calls from the agent’s task in Agent Logs.

TLS and certificates

Expand TLS and certificates for card authentication or request authentication. Each connection has its own settings.

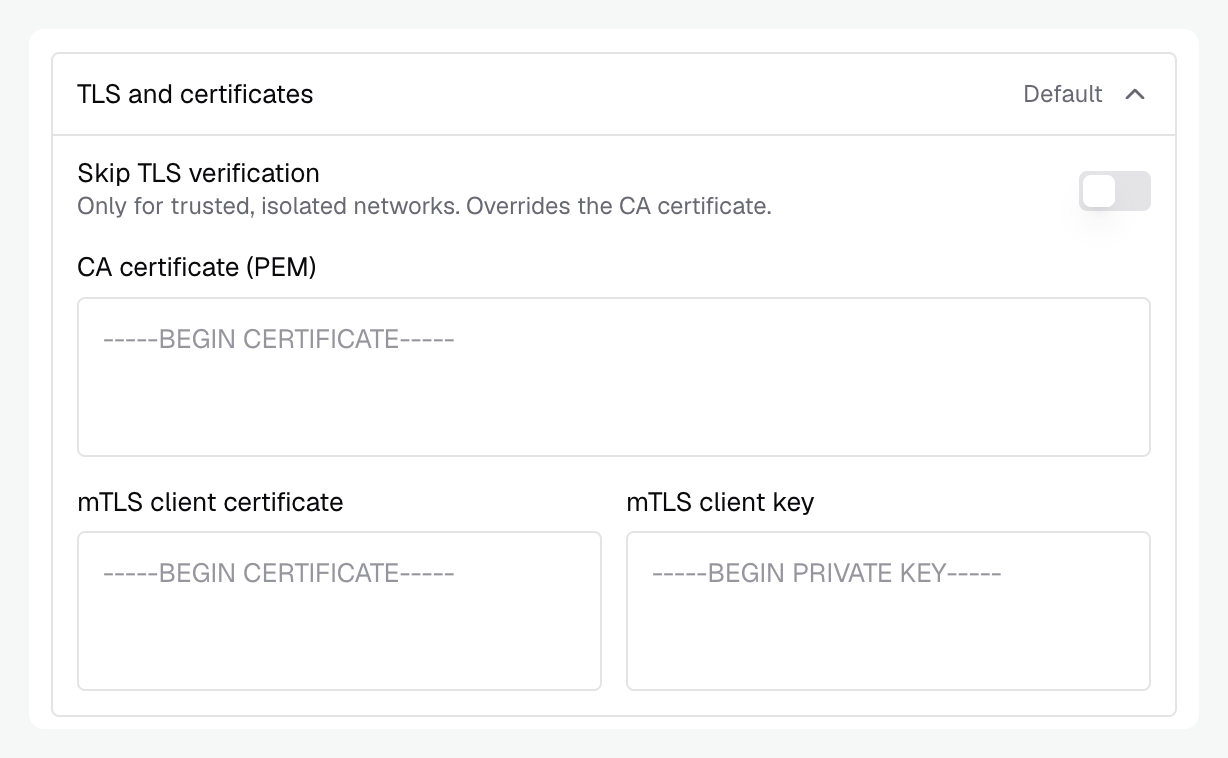

Expanded request TLS settings with certificate verification, CA certificate, and mTLS client certificate and key fields

Setting	Use it when
CA certificate, PEM	The upstream uses a private certificate authority that Bifrost does not already trust.
mTLS client certificate and key	The upstream requires a client certificate. Supply both PEM values.
Skip TLS verification	You deliberately need to bypass server certificate verification in an isolated test environment.

TLS settings here configure Bifrost’s upstream connections. They do not configure the certificate clients use to connect to Bifrost.

OAuth requirements and discovery

Agent authentication supports the shared OAuth client-credentials grant. Interactive sign-in and per-user OAuth consent are not part of agent registration.Bifrost sends the client ID and secret in the token request form, then uses the returned access token as a Bearer credential. Your authorization server must accept this client-authentication method. Configure scopes and resource when your authorization server requires them.Provide token_url directly, or use discovery_url. With only provider_url, Bifrost reads /.well-known/oauth-authorization-server at that URL. A discovered token endpoint must have the same origin as its discovery document. If your authorization server publishes a token endpoint on another origin, set token_url explicitly.The connection’s TLS settings also apply to OAuth discovery and token requests. Card authentication and request authentication remain separate, even when they use the same OAuth client.

Configure authentication through config.json or Helm

This example uses different credentials for card discovery and runtime requests. Replace the URLs with your agent’s endpoints and provide the referenced environment variables.

config.json
Helm values

{
  "agents": [
    {
      "name": "library-research",
      "agent_card_url": "https://research.example.com/.well-known/agent-card.json",
      "discovery_auth": {
        "type": "headers",
        "headers": {
          "Authorization": "env.AGENT_CARD_AUTHORIZATION"
        }
      },
      "runtime_auth": {
        "type": "headers",
        "advanced": true,
        "headers": {
          "X-Agent-Key": "env.AGENT_RUNTIME_KEY"
        },
        "tls": {
          "ca_cert_pem": "env.AGENT_CA_CERT_PEM"
        }
      },
      "forward_accepted_credential": true,
      "forward_accepted_credential_overrides_auth": false
    }
  ]
}

bifrost:
  agents:
    - name: library-research
      agent_card_url: https://research.example.com/.well-known/agent-card.json
      discovery_auth:
        type: headers
        headers:
          Authorization: env.AGENT_CARD_AUTHORIZATION
      runtime_auth:
        type: headers
        advanced: true
        headers:
          X-Agent-Key: env.AGENT_RUNTIME_KEY
        tls:
          ca_cert_pem: env.AGENT_CA_CERT_PEM
      forward_accepted_credential: true
      forward_accepted_credential_overrides_auth: false

advanced records the manual configuration choice. security_schemes, when supplied, names the card requirements your configuration satisfies. forward_accepted_credential_overrides_auth: true selects the incoming credential on a header collision. Use runtime_auth: { "type": "none", "advanced": true } when the forwarded credential is the only runtime authentication.Agent registrations are reconciled at startup. Keep the complete registration, including access grants, in the declaration you manage. See configuration for source-of-truth behavior.

When authentication fails

Symptom	Check first
Card fetch fails	Card URL, card credentials, and the card connection’s TLS settings. Runtime credentials do not authenticate this fetch.
Card loads but requests are unauthorized upstream	Request authentication, selected card requirement, and the same-header forwarding policy.
Registration reports a requirement mismatch	Refetch the card and choose a complete requirement, or deliberately configure authentication manually.
LLM or MCP logs show a service key	Confirm your server reuses the forwarded caller credential instead of its shared service key.
Bifrost refuses the caller	Check the client’s Bifrost credential and agent access.

Next, configure Agent access to choose who can call the registered agent.
